FHD Series Plastic Hopper Dryer

FHD series plastic hopper dryer can be directly connected with molding machine. It has the advantages of simplifying work, saving manpower, superb product quality, directly blanking, increasing injection rate, reducing power consumption and so on.

Send Inquiry

Product Description

1.FHD Series Plastic Hopper Dryer Introduction
At present, with the development of plastic production technology, the trend of direct hot air dryer has been adopted for resin drying. FHD series plastic hopper dryer can be directly connected with molding machine. It has the advantages of simplifying work, saving manpower, superb product quality, directly blanking, increasing injection rate, reducing power consumption and so on.

2. FHD Series Plastic Hopper Dryer Parameter (Specification)

Model	Height(mm)	Capacity(kg)	HeatingPower(kW)	BowerPower(kW)
FHD-1000	3550	1000	48	1500
FHD-2000	4200	2000	60	2200
FHD-3000	4800	3000	72	3000

Model	Capacity(kg)	HeatingPower(kW)	BowerPower(kW)	Dimension（cm)	Weight(kg)
FHD-12	12	1.8	50	64x44x76	22
FHD-25	25	3.5	90	76x50x104	34
FHD-50	50	4.5	100	87x54x121	45
FHD-75	75	6.5	250	94x60x131	56
FHD-100	100	6.5	250	101x74x141	68
FHD-150	150	9	350	110x74x162	78
FHD-200	200	12	350	118x84x176	110
FHD-300	300	15	750	142x100x183	152
FHD-400	400	15	750	148x106x202	170
FHD-600	600	20	1100	158x116x240	280
FHD-800	800	30	2200	183x128x248	460
FHD-1500	1500	50	3000	204x142x319	800

Parameters are subject to change without prior notice

3.FHD Series Plastic Hopper Dryer Feature And Application

·Uniform hot air distribution
·High thermal efficiency, greatly shorten drying time
·Accurate temperature control
·High-precision regulator, eliminate temperature error
·Save time and manpower
·Split design of barrel and base, convenient and complete material cleaning, simple and rapid material replacement
·Direct hot blanking, shorten material dissolution time and improve injection rate

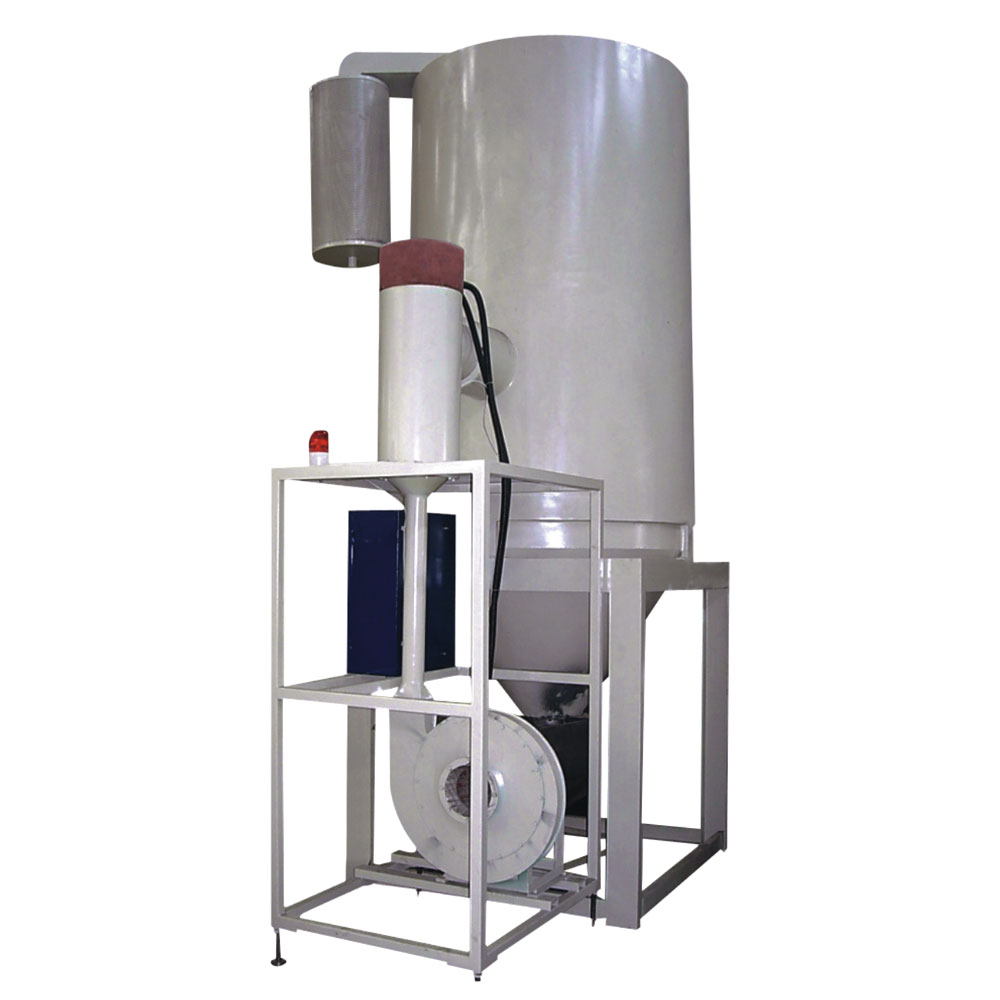

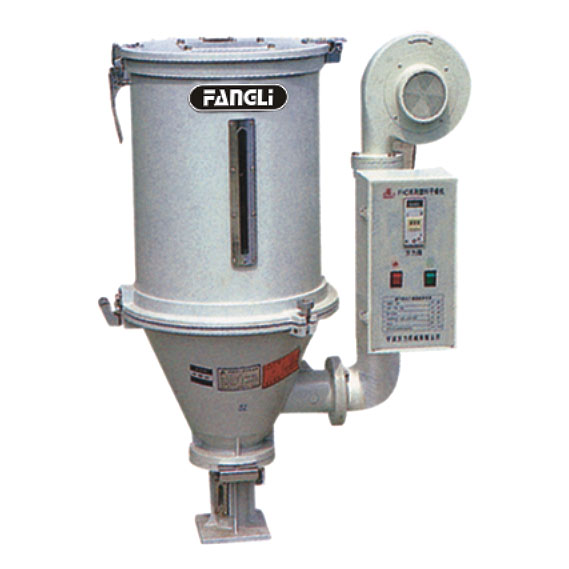

4.FHD Series Plastic Hopper Dryer Details
