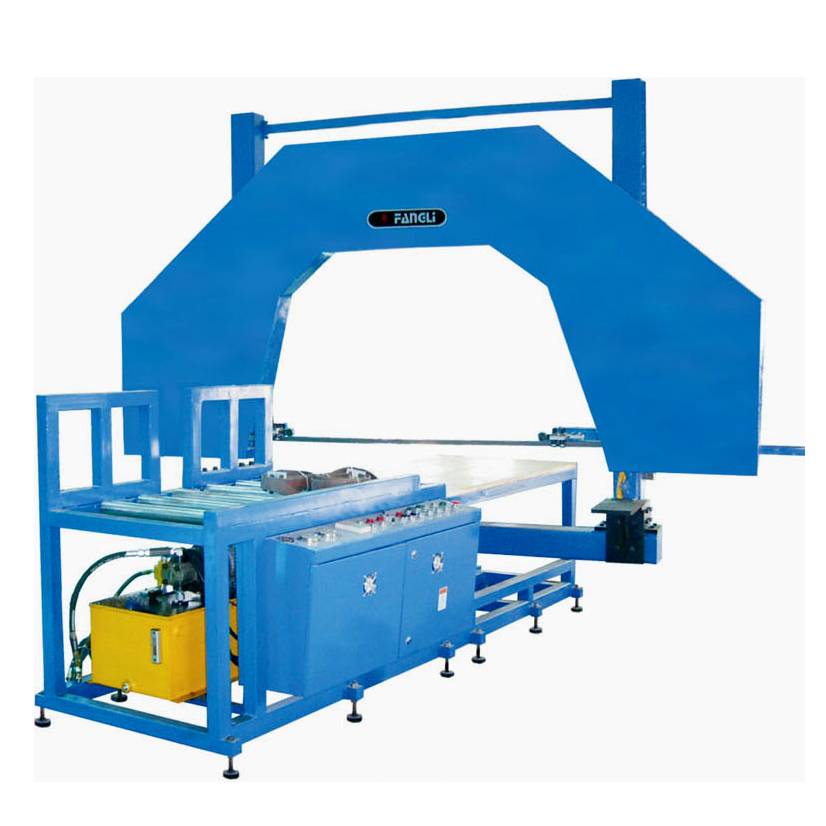

Multi Angle Band Saw Machine
Multi Angle Band Saw Machine
Multi angle band saw machine is strong construction, easy operation, stable performance and low noise.
Send Inquiry
Product Description
Multi angle band saw machine application & feature
●It was designed to be used in workshop to process elbow ,tee and cross these fittings, according to setting angle and length to cut pipe.
●Cut pipe in any angle from 0-45°,can expand to 67.5°.
●Automatic check band saw broken and stop machine to ensure operatore’s safety.
Technical data
|
Model No. |
DJQ450S |
DJQ630S |
DJQ630 |
|
Cutting range (mm) |
100-450 |
160-630 |
160-630 |
|
Cutting angle |
0-45° (67.5° ) |
0-67.5° |
0-45° (67.5° ) |
|
Angle tolerance |
《 ±1° |
《 ±1° |
《 ±1° |
|
Cutting speed |
334m/min |
334m/min |
《200m/min |
|
Forward way |
Manual |
Manual |
Adjustable |
|
Max working pressure |
|
|
6.3Mpa |
|
Total power |
0.75kW |
1.5kW |
3.7kW |
|
Power supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Total weight |
186kg |
1450kg |
1900kg |
|
Dimension <mm) |
1520x1200x1730 |
4350x3460x2600 |
3133x2800x3430 |
Technical data
|
Model No. |
DJQ800 |
DJQ1200 |
DJQ1600 |
|
Cutting range (mm) |
315-800 |
450-1200 |
630-1600 |
|
Cutting angle |
0-45° (67.5° ) |
0-45° (67.5° ) |
0-45° (67.5° ) |
|
Angle tolerance |
≤ ±1° |
≤ ±1° |
≤±1° |
|
Cutting speed |
≤200m/min |
≤250m/min |
≤240m/min |
|
Forward way |
Adjustable |
Adjustable |
Adjustable |
|
Max working pressure |
6.3Mpa |
6.3Mpa |
6.3Mpa |
|
Total power |
3.7kW |
6.2kW |
10.5kW |
|
Power supply |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Total weight |
2300kg |
4000kg |
5600kg |
|
Dimension <mm) |
3530x2950x2650 |
4100x3600x3800 |
8350x7500x4827 |
Revision right reserved
